Wouter de Vries

I am a systems engineer at Cloudflare. I obtained my PhD in the area of computer networks, specifically in the optimization of anycast catchments, at the University of Twente. My interests include DNS, Anycast, Networking in general and data analysis.

Paper: Broad and Load-aware Anycast Mapping with Verfploeter

26 Oct 2017

The paper “Broad and Load-aware Anycast Mapping with Verfploeter” will appear in the 2017 Internet Measurement Conference (IMC) on November 1-3, 2017 in London, United Kingdom.

The full paper is available here.

From the abstract:

IP anycast provides DNS operators and CDNs with automatic failover and reduced latency by breaking the Internet into catchments, each served by a different anycast site. Unfortunately, understanding and predicting changes to catchments as anycast sites are added or removed has been challenging. Current tools such as RIPE Atlas or commercial equivalents map from thousands of vantage points (VPs), but their coverage can be inconsistent around the globe. This paper proposes Verfploeter, a new method that maps anycast catchments using active probing. Verfploeter provides around 3.8M passive VPs, 430x the 9k physical VPs in RIPE Atlas, providing coverage of the vast majority of networks around the globe. We then add load information from prior service logs to provide calibrated predictions of anycast changes. Verfploeter has been used to evaluate the new anycast deployment for B-Root, and we also report its use of a nine-site anycast testbed. We show that the greater coverage made possible by Verfploeter’s active probing is necessary to see routing differences in regions that have sparse coverage from RIPE Atlas, like South America and China.

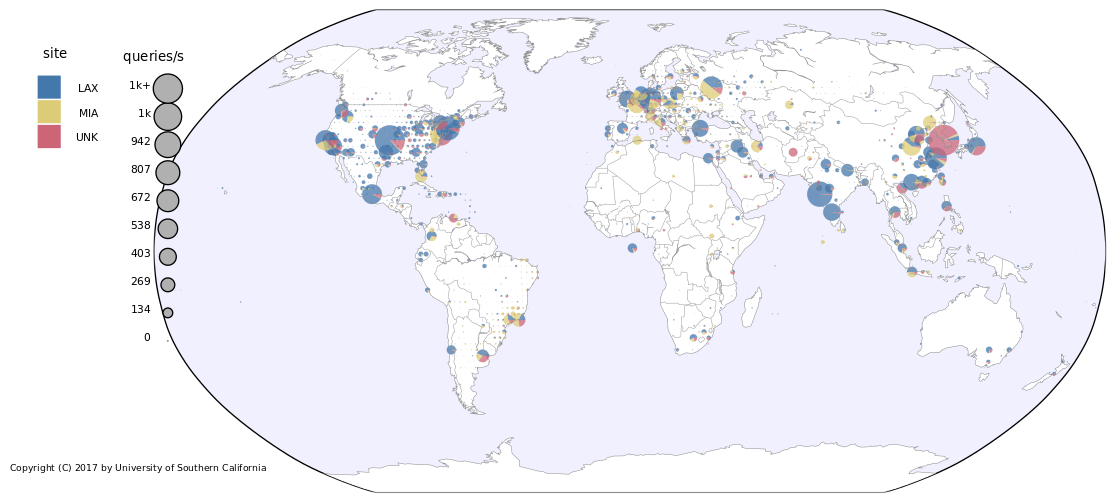

Image of distribution of traffic over B-root

Distribution of load across two anycast sites of B-root using Verfploeter. The work in this paper was joint work by Wouter B. de Vries, Ricardo de O. Schmidt (Univ. of Twente), Wes Hardaker, John Heidemann (USC/ISI), Pieter-Tjerk de Boer and Aiko Pras (Univ. of Twente). The datasets used in the paper are available at https://ant.isi.edu/datasets/anycast/index.html#verfploeter.
